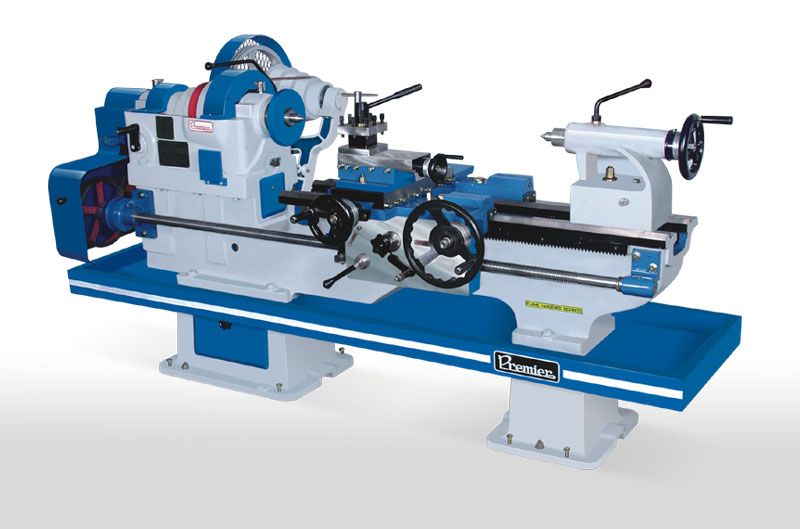

Capacity
  Standard
Center height 10” - 250 mm
Optional
Center height 12” - 300 mm
Center height
10” -250 mm
12” -300 mm
Swing over bed
19” -480 mm
23” -580 mm
Swing over Cross slide
11” -280 mm
15” -380 mm
Swing in gape
31” -790 mm
35” -890 mm

Bed
Bed Lengh
Admit Between Center
HD-1 (5 '-’6” - 1675 mm)
22” - 555 mm
HD-2 (7’ -0” - 2135mm)
39” -1000 mm
HD-3 (9 - ’0” - 2745 mm)
64” -1625 mm
HD-4 (10’ -0” - 3050 mm)
76” -1930 mm
HD-5 (12' -’0” - 3660 mm)
100” -2540 mm
HD-6 (14’ -0” - 4270 mm)
124” -3150 mm
Bed type
2V & 2 Flat
Bed width
12.3/4” -325 mm
Lenght of gape in front of face plate
8”- 200 mm

Head Stock
Number of spindle speed
8
Range of spindle speed
30 to 490 RPM
Spindle nose dia.
3” -76 mm
Spindle bore
2.1/8” -52 mm
Spindle threads
6 TPI
Spindle morse taper (Inside)
MT - 4

Carriage & Compound
Cross Slide Dimension
8” -200 mm x 18” -455 mm
Cross slide travel
10” -250 mm
Compound slide dimension
10” -250 mm x 4.3/4” -120 mm
Compound slide travel
6” -150 mm
Tool post square
4.3/4” -120 mm
Tool shank section
1” -25 mm x 1” -25 mm

Tail Stock
Spindle ram diameter
2.3/4” -70 mm
Spindle ram travel
8”-200 mm
Spindle ram morse taper
MT -4

Threads
Number of threads range in metric
13
Number of threads range in inch
19
Number of pitch range in metric
1 to 6 PITCH
Number of pitch range in inch
2 to 24 TPI
Lead screw diameter
1.1/2” -38 mm
Lead screw threads
4 TPI
Induction harden bed ways.
Bed is made from high quality cast iron & strictly inspected with microlevel & straight edge.
Head stock spindle is made from high tensile steel duly hardened & ground.
Apron is totally enclosed oil bath system with lever type arrangement for automatic feeds.
Tail stock spindle is hardened & ground, made from alloy steel.
Meticulous care is taken in selecting the right raw material for every component.
Each & every component is passed through strict quality control.
Machine accuracy is tested as per IS : 1878 (Part - I) 1971.

Standard Accessories :
Chuck back plate, tool post spanner, Centre adapter, Dead centres - 2 nos, Motor Pulley, Change gear set.



Optional Accessories :
Face plate, Steady rest, Follow rest, Carrier plate, Full or Semi Norton gear box, Rear tool post, Coolant pump with tank & fittings, Taper turning attachment, Machine lamp, Electric Motor, R/f Switch, Motor Vee Belt, Dog chuck, True chuck, Spindle bore (3.1/8” -80mm, 4.1/8” -100mm)

Electrical :
Motor Recommended 3 H.P. / 2.25 KW



General Specification
Model Machine Weight (Approx) Kgs. Floor Space (Approx) L x W x H (mm)
HD-1 1200 kgs. 2000 x 1070 x 1450
HD-2 1350 kgs. 2450 x 1070 x 1450
HD-3 1450 kgs. 3000 x 1070 x 1450
HD-4 1600 kgs. 3450 x 1070 x 1450
HD-5 1800 kgs. 4100 x 1070 x 1450
HD-6 2200 kgs. 4750 x 1070 x 1450
